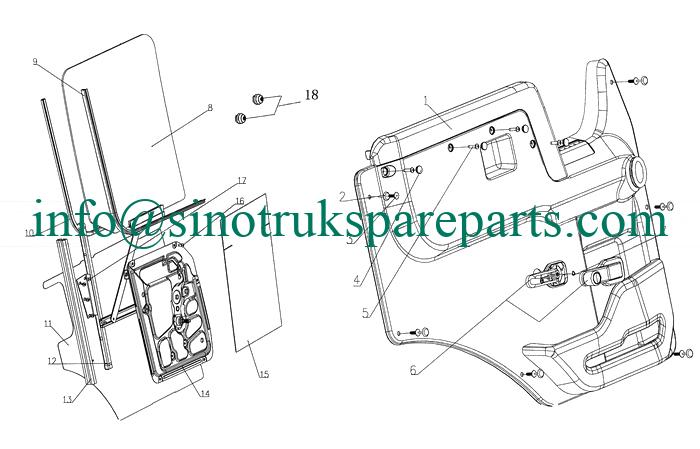

Door, glass and accessories |
TAKSI TRUK BAGAIMANA |
Urutan |
Nama |
Bagian No. |
2 |
Rivets |
AZ1642930005 |
40-1 |
Right door panel |
AZ1642210004 |
3 |
Rivets |
AZ1642930006 |
40-2 |
Right door panel |
AZ1642210006 |
4 |
Screw cap |
AZ1642930007 |
40-3 |
Right door glass guide |
WG1642210008 |
5 |
screws |
Q2140620 |
40-4 |
Door hinge assembly |
AZ1642210009 |
6 |
Handle |
WG1642330001 |
40-5 |
Hexagon flange bolts |
Q1840825 |
7 |
Shaft circlip |
Q43107 |
40 |
Right door with glass |
AZ1642210002A |
8 |
Left door glass assembly |
AZ1642330060 |
8A |
Right door glass assembly |
AZ1642330061 |
9 |
Sealing strip |
WG1642330011 |
10 |
Outer sealing strip |
WG1642330013 |
11 |
Door protective layer |
AZ1642330019 |
12 |
Left glass slide |
WG1642330009 |
17 |
screws |
Q2140610 |
12A |
Right glass slide |
WG1642330010 |
18 |
Rubber clog |
AZ1642930030 |
13 |
Chute seal |
WG1642330015 |
19 |
Left corner window |
WG1642350003 |
14 |
Left glass lifter assembly |
WG1642330003 |
19A |
Right corner window |
WG1642350004 |
14A |
Right glass lifter assembly |
WG1642330004 |
20 |
Left corner window seal |
WG1642350001 |
15 |
Film |
AZ1642330051 |
20 |
Right corner window seal |
WG1642350002 |
16 |
screws |
Q2140612 |
30 |
Left door assembly with glass |
AZ1642210001A |
30 |
Left door assembly |
AZ1642210001 |
30-1 |
Left the car door panel |
AZ1642210003 |
30-2 |
Left door panel assembly |
AZ1642210005 |
30-3 |
Left door glass guide |
WG1642210007 |
30-4 |
Door hinge assembly |
AZ1642210009 |
1 |
Door guard plate – Rakitan pelat pelindung bagian dalam pintu Wg1642331220 |
WG1642330020 |
30-5 |
Hexagon flange bolts |
Q1840825 |
1A |
Door guard plate – Rakitan pelat pelindung bagian dalam pintu WG1642331240 |
WG1642330040 |
40 |
Right door assembly |
AZ1642210002 |
